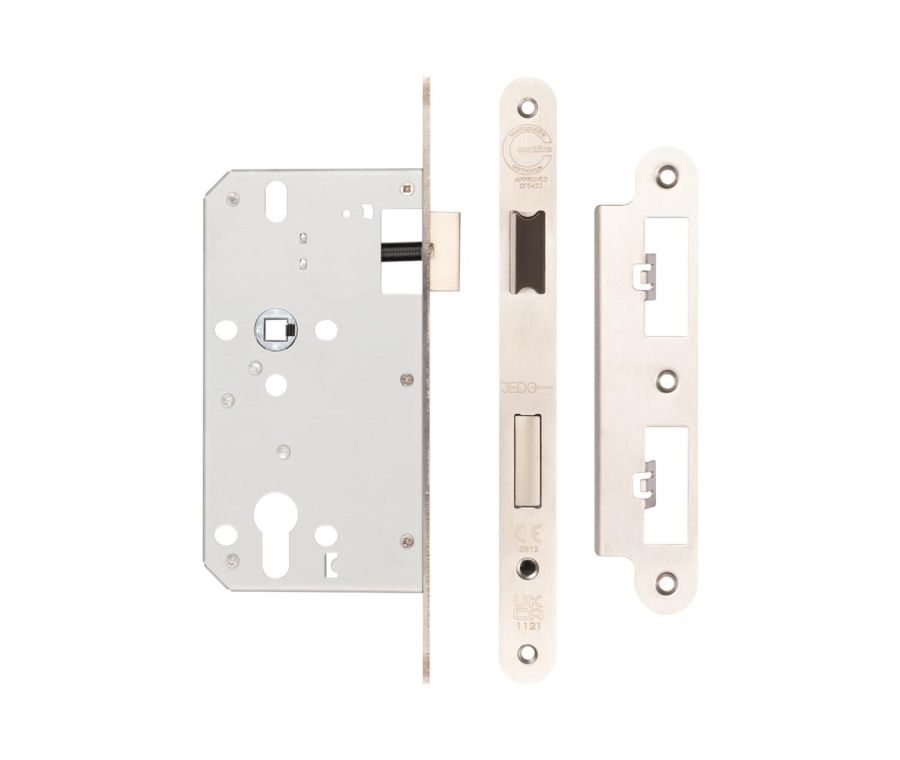

72mm Satin Stainless Steel Din Euro Sashlock 60mm Backset - Radiused
Delivery2 - 3 Days
Product CodeJL-DS60RSSS
Overview
The 72mm Satin Stainless Steel Din Euro Sashlock 60mm Backset - Radiused is a lock or latch, finished in Satin Stainless Steel.
Established in 1973 Frelan Hardware has since become a leading designer, manufacturer & supplier in the industry.
Key Features
- Satin Stainless Steel finish
- DIN Standard fixing
- Rated for 60 minute protection
- Euro profile
- Manufactured for Frelan Hardware
Technical Specifications
| Brand | Frelan Hardware |
|---|---|
| Finish | Satin Stainless Steel |
| Type | Upright |
| Material Grade | 304 Stainless Steel |
| Forend Options | Square (JL-DS60SSS) / Radius (JL-DS60RSSS) |
| Sprung | Yes |
| Fire Rating | FD30/60 |
| Certifire | Yes |
| BS EN 12209 | Yes |
| UKCA / CE Marked | Yes |
| Corrosion Grade | 3 |
| Mechanical Warranty | 15 Years |
| Use | Internal / External (Residential / Commercial) |
| Suitable Door Thickness | 35���54mm |
| Case Height | 235mm |
| Backset | 60mm |
| Forend Width | 22mm |
| Forend Height | 145mm |
| Profile | Euro |
| Fixing | DIN Standard |
| Manufacturer | Frelan Hardware |
| Product Code | JL-DS60RSSS |
Suitable For
Lock or latchs like this are suitable for internal doors in residential and commercial settings. This version is finished in Satin Stainless Steel. It is rated for 60 minute protection.
What's Included
- 1 x 72mm Satin Stainless Steel Din Euro Sashlock 60mm Backset - Radiused
- Fixings
Installation & Maintenance
The lock or latch case is fitted into a mortice in the door edge, with the keep or striker plate fitted to the frame in the corresponding position.
Finished in Satin Stainless Steel, this item should be wiped with a soft, dry or slightly damp cloth to keep the surface clean, avoiding abrasive cleaners which could damage the finish. Check periodically that the lock operates smoothly and that fixing screws and keeps remain correctly aligned. Apply a small amount of light lock lubricant to the mechanism if it becomes stiff.
Frequently Asked Questions
Who manufactures this product?
It is manufactured for Frelan Hardware.
What finish is this lock or latch available in?
This version is finished in Satin Stainless Steel.
What door thickness is this suitable for?
This item is suitable for doors between 35���54mm thick.
Is this suitable for fire doors?
Yes, it is rated for 60 minute protection.
What fixing type does this use?
It uses din standard fixing.
What is the product code?
The product code is JL-DS60RSSS.
Is this lock or latch sold individually?
Yes, unless the listing states otherwise, this item is sold individually.
