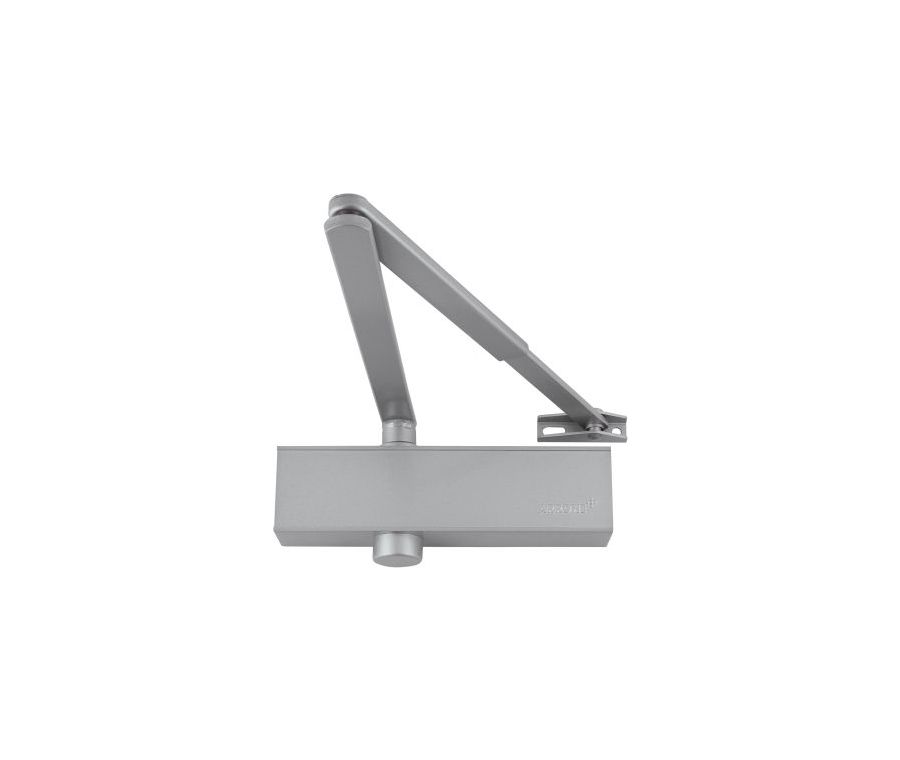

AR8200-SE Hoppe Arrone Size 2-4 Overhead Door Closer c/w Slide Cover - Silver (87106851)

AR8200-SE Hoppe Arrone Size 2-4 Overhead Door Closer c/w Slide Cover - Silver (87106851)

• Power size: 2 to 4 adjustable by template

• Function: Closing, latching

• Cover: Slide cover

• Maximum door width: 1,100 mm (Fig 1 and Fig 61), 950 mm (Fig 6)

• Maximum door weight: 80 kg (Fig 1 and Fig 61), 60 kg (Fig 6)

• Arm application: Fig 1, Fig 6 and Fig 61 fixing positions

• Successfully type tested for conformity to all the requirements of BS EN 1154:1997

• - Door mount pull (Fig 1), transom mount push (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 3

• - Door mount push (Fig 6): 3 | 8 | 3 | 1* | 1 | 3

• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.

• CE Marked: AD0118

• Certifire approved: CF295
