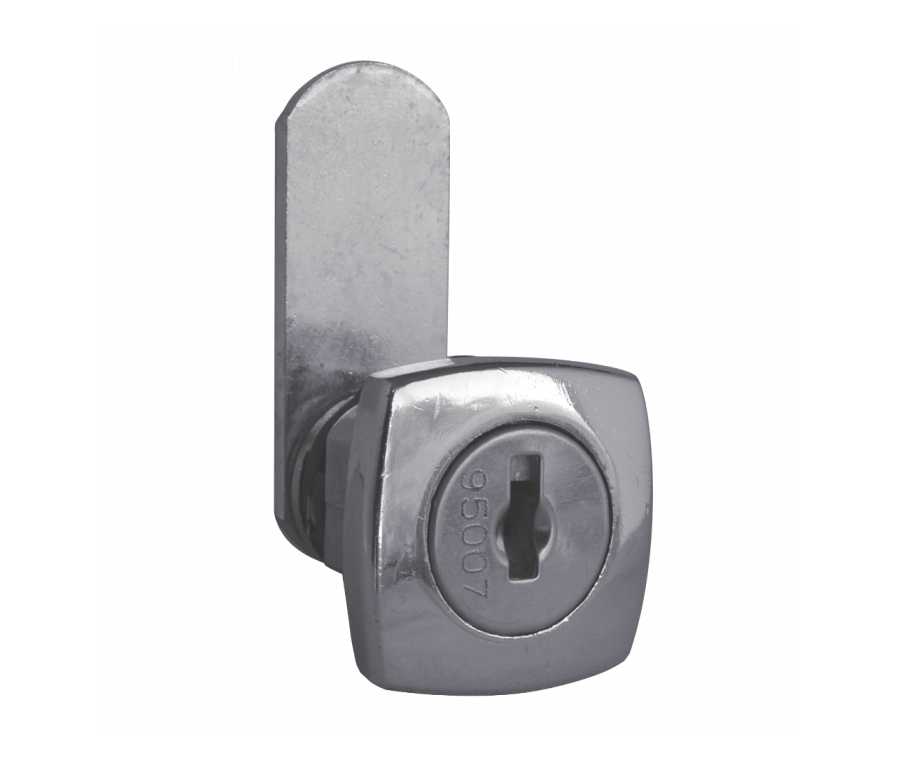

ASEC Square Nut Fix Camlock 90 Degree – 16mm 90° KD

Overview

The ASEC Square Nut Fix Camlock 90 Degree (16mm, Keyed To Differ) is an easy to install, square faced nut fix camlock designed to fit metal and timber cupboards and cabinets. It has a 90 degree clockwise movement and is supplied keyed to differ, meaning each lock is supplied with its own unique key.

The 16mm size is measured from the rose to the cam, so it suits panels or doors around 16mm thick. It is finished in chrome plated and supplied complete with 2 keys.

Key Features

• Square faced, nut fix camlock
• 90 degree clockwise movement
• Keyed to differ, with 200 differs available across the range
• Supplied with 2 keys
• Sizes are measured from the rose to the cam, so the correct length should be chosen to match your panel thickness
• Suitable for both metal and timber cupboards and cabinets
• Chrome plated finish
• Keyed alike (KA) versions are also stocked, and master keying (MK) is available as an in-house workshop service

Technical Specifications

Brand	Asec
Finish	Chrome Plated
Body Length (rose to cam)	16mm
Body Diameter	20mm
Body Width	20mm
Cam Height	41.5mm
Movement	90° Clockwise
Head Shape	Square
Fixing	Nut
Keying	Keyed To Differ (KD)
Differs	200
Key Series	92
Keys Supplied	2
Packaging	Visi
Pack Quantity	1
Weight	146g
Manufacturer Reference	AS11465
Barcode	5055120784861
Product Code	AS11465

Suitable For

This camlock is suitable for metal and timber cupboards, cabinets and similar storage furniture in residential, retail and office settings, wherever a simple nut fixed cam lock is required for a panel around 16mm thick.

What's Included

• 1 x ASEC Square Nut Fix Camlock (16mm, 90°, Keyed To Differ)
• Fixing nut
• 2 x keys

Installation & Maintenance

Drill a hole through the door or panel to match the 20mm body diameter, then insert the lock body from the front so the square face sits flush against the surface. Fit the cam to the back of the barrel in the required orientation for the 90 degree clockwise throw, then secure the whole assembly using the fixing nut from behind the panel.

Keep the lock and keys free of dirt and debris, and apply a small amount of light lubricant to the cam mechanism periodically to keep it turning smoothly.

Frequently Asked Questions

What does "keyed to differ" mean?

Keyed to differ means each lock is supplied with its own unique key, rather than sharing a key with other locks in the range. Up to 200 differs are available.

Is a keyed alike version available?

Yes, a keyed alike (KA) version, where multiple locks share the same key, is also stocked.

Can this lock be master keyed?

Yes, master keying (MK) is available as an in-house workshop service. Call for details on arranging this.

What panel thickness does this size suit?

The 16mm size is measured from the rose to the cam, so it is suited to panels or doors around 16mm thick.

How many keys are supplied?

Two keys are supplied with each lock.

What finish is this lock available in?

This version is finished in Chrome Plated.

How does the lock operate?

It has a 90 degree clockwise movement, operated by turning the key.

What materials is this camlock suitable for?

It is designed to fit both metal and timber cupboards and cabinets.
