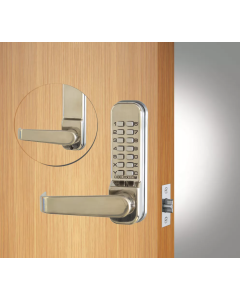

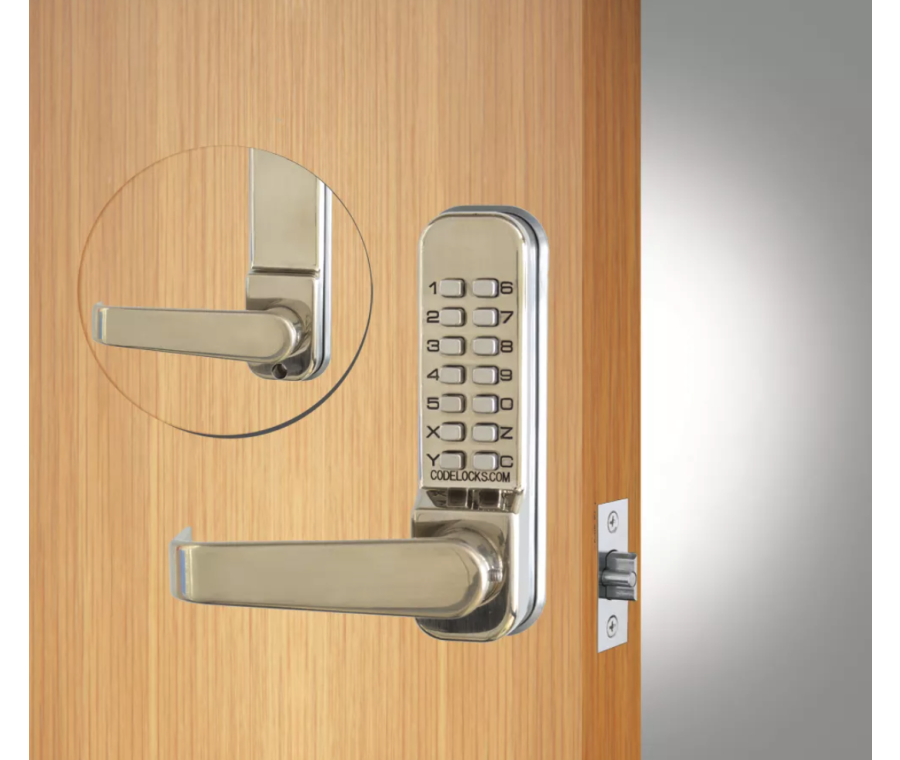

Codelocks CL415 MECHANICAL Passage Tubular Mortice Latch PVD Stainless Steel with lever handle

Codelocks CL415 MECHANICAL Passage Tubular Mortice Latch PVD Stainless Steel with lever handle

• Code free access; Features black dot on Y button. When pressed with code input the lever will retract the latch freely.
• Fire rated only when fitted with Codelock FireKit PFKP V2 (sold seperately below)
• Medium duty mechanical locks with full size return to door lever handles
• Ideal for use in environments where knob would not be suitable
• Tubular mortice latch with anti shim plunger
• Retracts by using inside handle freely
• Outside handle use with code input
• Suitable for internal & external applications
• Tubler alighnment for easy code change
• Neoprene seals included

Technical

• Buttons: 2 x 7
• Code change method: Tumblers (off door)
• Codes: Single code storage
• Combinations: 8191 non sequential available
• Handing: Non Handed - for left or right hung doors/gates
• Key pad: Stainless Steel
• Latch type: Mortice Latch
• Lock material: Zinc alloy
• Orientation: Vertical
• Spindle: Two part 8mm Spring Loaded
• Application: Internal & external
• User type: Code
• Door thickness: 35 - 60mm
• Size: 161 x 41mm

Options

• Latch Backset: 60mm or 70mm
• Fire Rated 30-60 mins when combined with Codelock FireKit PFKP V2 (sold seperately below)
