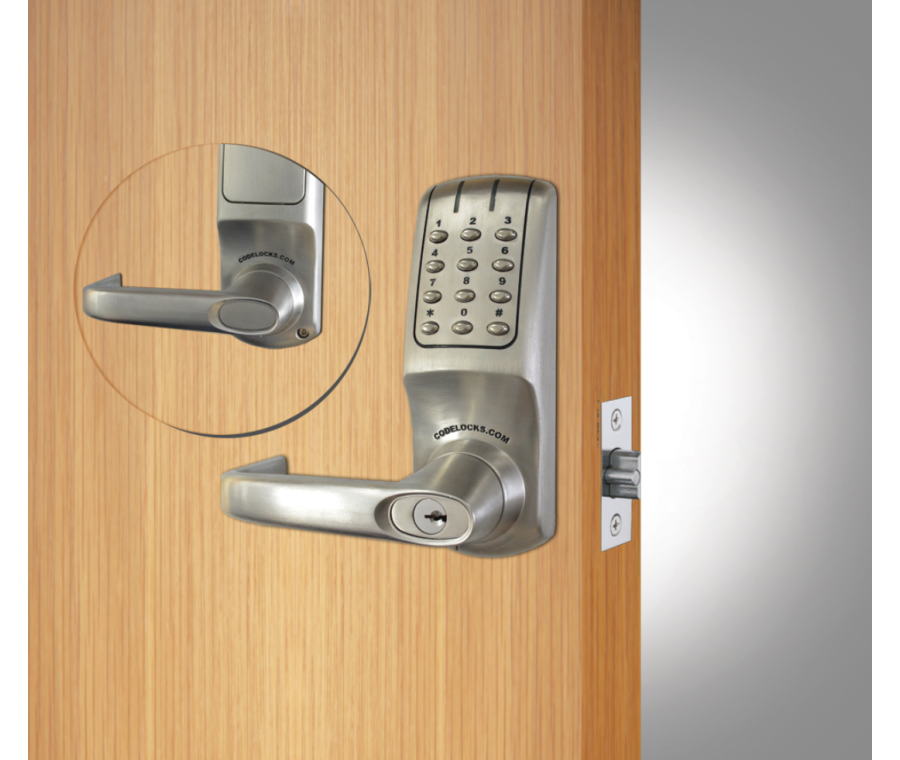

Codelocks CL5010 Brushed Steel Heavy Duty Electronic Tubular Mortice Latch

Codelocks CL5010 Brushed Steel Heavy Duty Electronic Tubular Mortice Latch

• Fire rated only when fitted with Codelock FireKit PFKP V2 (sold seperately below)
• Heavy Duty Locks for use in high traffic applications
• Easy to install
• Fully programmable on the door via keypad
• Storeroom function so latch can be retracted by key
• Classroom function, tailpiece can be fitted so lock can be left code free when key removed
• Allows up to 10 one time user codes
• Particularly suitable for use in health, educational, commercial & residential environments
• PVD low maintenance finish
• Remote release connections provided for connection to external switches or alarm
• Tamper time out and low battery warning
• Locked & unlocked LED indicator option
• Tested to Grade 2 ANSI A156.2 / A156.25
• Two year guarantee
• Manufactured by Codelocks

Technical

• Battery Override: Via a PP3 battery placed against external contacts
• Fire rated: BS1634-1:2008 when fitted with FireKit PFKP V2 (sold seperately below)
• Buttons: 3 x 4
• Code change method: With keypad (on door)
• Codes: User codes 4,5 or 6 digits long
• Handing: Non Handed - for left or right hung doors/gates
• Keyed Alike: available on request
• Key pad: Stainless Steel
• Latch type: 60mm or 70mm mortice latch
• Lock material: Zinc alloy
• Low Battery Warning: Red LED indication light will flash on opening
• Memory: Stores up to 80 user codes
• Operations: Up to 200,000 operations per 4 x AA batteries (supplied) (supplied)
• Orientation: Vertical
• Spindle: Two part 8mm spring loaded spindle
• Application: Internal & external
• User type: Code
• Door thickness: suitable for wooden doors 35 - 60mm
• Size: 193 x 70mm

Options

• Mortice Latch backset: 60mm, 70mm
• Fire Rated 30-60 mins when combined with Codelock FireKit PFKP V2 (sold seperately below)
• PinGuard also availiable for weather & code protection (sold seperately below)
• Keyed Alike option available, contact us for details.
