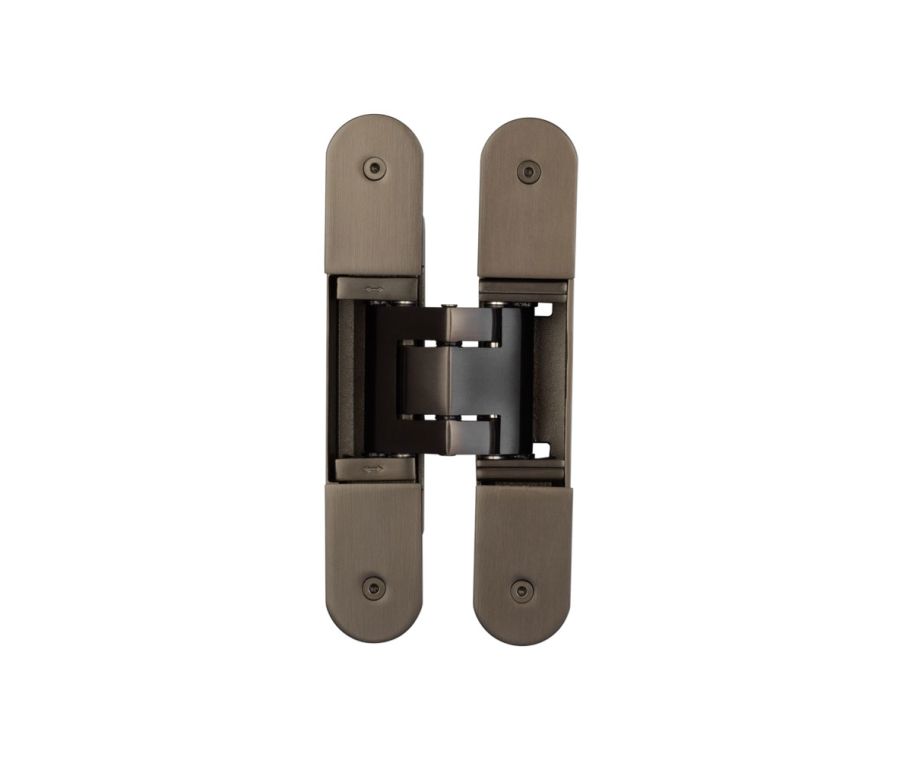

Ghost Dark Bronze 160mm Concealed Hinge | CH100DB
Delivery24-48hrs
Product CodeFLCH100DB
Overview
The Ghost Dark Bronze 160mm Concealed Hinge is a hinge, finished in Bronze.
Suitable for Flush, un-rebated quality timber doors Plated 304g Stainless Steel base material
Established in 1973 Frelan Hardware has since become a leading designer, manufacturer & supplier in the industry.
Key Features
- Suitable for Flush, un-rebated quality timber doors
- Plated 304g Stainless Steel base material
- 3D Adjustable: Height, depth and lateral movement
- Concealed fixings with removable cover plates
- Maintenance Free
- 5 year mechanical guarantee
- Ghost Range by Carlisle Brass
- Bronze finish
- Rated for 60 minute protection
- Manufactured for Frelan Hardware
Technical Specifications
| Brand | Frelan Hardware |
|---|---|
| Finish | Bronze |
| Max Door Weight | 120KG |
| Suitable for | Internal - Residential / Commercial |
| Fire Rated | FD60 only when fitted with 2mm Graphite Flexifire |
| Includes | 2 x Allen keys, 8no SSS wood screws, 4no cover plates |
| Size | 160mm |
| Overall Size | 160 x 31.5 x 76.5mm |
| Projection | 7.5mm |
| Fixing Centres | 138mm |
| Thickness | 7mm |
| Suitable Door Thickness | 35 ��� 54mm |
| Fire Rating | 60 Minute Protection |
| Manufacturer | Frelan Hardware |
| Product Code | CH100DB |
Suitable For
This hinge is suitable for internal doors in residential and commercial settings. This version is finished in Bronze. It is rated for 60 minute protection.
What's Included
- 1 x Ghost Dark Bronze 160mm Concealed Hinge
- Fixing screws
Installation & Maintenance
Mortice the door and frame edges to match the thickness of the hinge leaf, then fit and screw each hinge into place, keeping the same orientation across all hinges on the door.
To keep the Bronze finish looking its best, wipe with a soft, dry or slightly damp cloth and avoid abrasive cleaners. Check that hinges remain correctly aligned and that fixing screws are tight at least once a year. If the hinge becomes stiff, apply a small amount of fine machine oil or a PTFE-based lubricant to the knuckle joint and wipe away any excess.
Frequently Asked Questions
Who manufactures this product?
It is manufactured for Frelan Hardware.
What finish is this hinge available in?
This version is finished in Bronze.
What door thickness is this suitable for?
This item is suitable for doors between 35 ��� 54mm thick.
Is this suitable for fire doors?
Yes, it is rated for 60 minute protection.
What is the product code?
The product code is CH100DB.
Is this hinge sold individually?
Yes, unless the listing states otherwise, this item is sold individually.
