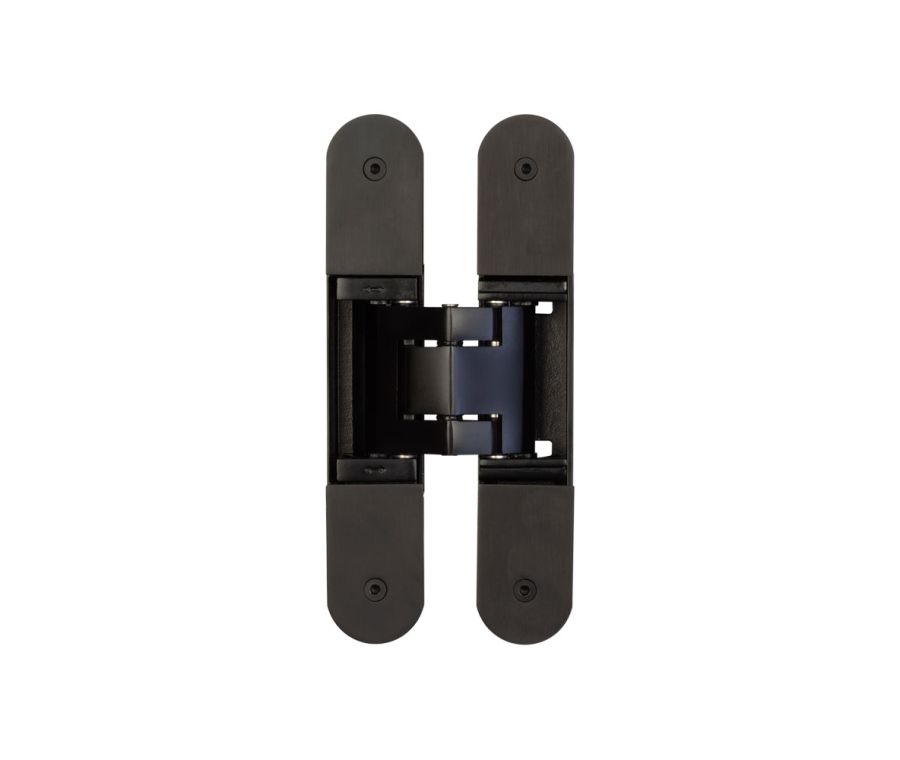

Ghost Matt Black 160mm Concealed Hinge | CH100MB
Delivery24-48hrs
Product CodeFLCH100MB
Overview
The Ghost Matt Black 160mm Concealed Hinge is a hinge, finished in Matt Black.
Suitable for Flush, un-rebated quality timber doors Plated 304g Stainless Steel base material
Established in 1973 Frelan Hardware has since become a leading designer, manufacturer & supplier in the industry.
Key Features
- Suitable for Flush, un-rebated quality timber doors
- Plated 304g Stainless Steel base material
- 3D Adjustable: Height, depth and lateral movement
- Concealed fixings with removable cover plates
- Maintenance Free
- 5 year mechanical guarantee
- Ghost Range by Carlisle Brass
- Matt Black finish
- Rated for 60 minute protection
- Manufactured for Frelan Hardware
Technical Specifications
| Brand | Frelan Hardware |
|---|---|
| Finish | Matt Black |
| Max Door Weight | 120KG |
| Suitable for | Internal - Residential / Commercial |
| Fire Rated | FD60 only when fitted with 2mm Graphite Flexifire |
| Includes | 2 x Allen keys, 8no SSS wood screws, 4no cover plates |
| Size | 160mm |
| Overall Size | 160 x 31.5 x 76.5mm |
| Projection | 7.5mm |
| Fixing Centres | 138mm |
| Thickness | 7mm |
| Suitable Door Thickness | 35 ��� 54mm |
| Fire Rating | 60 Minute Protection |
| Manufacturer | Frelan Hardware |
| Product Code | CH100MB |
Suitable For
This hinge is suitable for internal doors in residential and commercial settings. This version is finished in Matt Black. It is rated for 60 minute protection.
What's Included
- 1 x Ghost Matt Black 160mm Concealed Hinge
- Fixing screws
Installation & Maintenance
The hinge is morticed into the door and frame edges to the depth of the hinge leaf, then secured using the fixing screws supplied, ensuring all hinges on the door are fitted with the same orientation.
Finished in Matt Black, this item should be wiped with a soft, dry or slightly damp cloth to keep the surface clean, avoiding abrasive cleaners which could damage the finish. Check that hinges remain correctly aligned and that fixing screws are tight at least once a year. If the hinge becomes stiff, apply a small amount of fine machine oil or a PTFE-based lubricant to the knuckle joint and wipe away any excess.
Frequently Asked Questions
Who manufactures this product?
It is manufactured for Frelan Hardware.
What finish is this hinge available in?
This version is finished in Matt Black.
What door thickness is this suitable for?
This item is suitable for doors between 35 ��� 54mm thick.
Is this suitable for fire doors?
Yes, it is rated for 60 minute protection.
What is the product code?
The product code is CH100MB.
Is this hinge sold individually?
Yes, unless the listing states otherwise, this item is sold individually.
| mpn | CH100MB |
|---|---|
| Delivery | 24-48hrs |
| SKU | FLCH100MB |
| GTIN | 5029873567811 |
| Finish | Black (Matt) |
