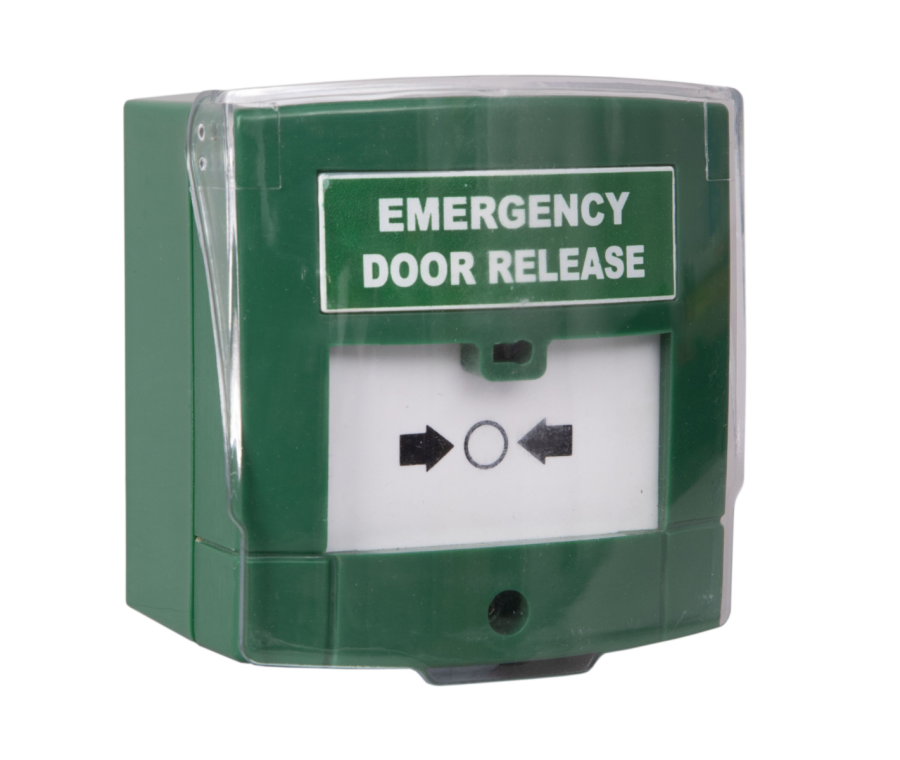

Illuminated Emergency Door release Resettable

Specification

• Double pole (EDR-2N)

- 1 x Pole (Positive switching)

- 1 x Pole (Changeover contact)

• Includes audible/LED (selectable)
• 12/24V operation
• Voltage 12/24 VDC @ 30/45mA
• Operating temperature: -10C to 55C • IP24 Rated
• Resettable

Features

• All one colour
• Easy clean surface (ideal for hospitality areas)
• Easy cable entry from sides or rear
• Screw footprint for surface fitting onto standard back box
• Key reset operation (not replacement glass) • Internal use
• Emergence Door Release - permanently lit.

- Changes to red on activation/alarm
• Includes plastic front covers which flip up for operation

Dimensions

 • 87x87x60 (mm) • 248g (Boxed)
• 162g (Unboxed)

Contents

• Emergency Door Release • EDR-COVER-N
• Security Screws
• Allen Key
• Mounting Plate
• 2 RESETKEY-N
