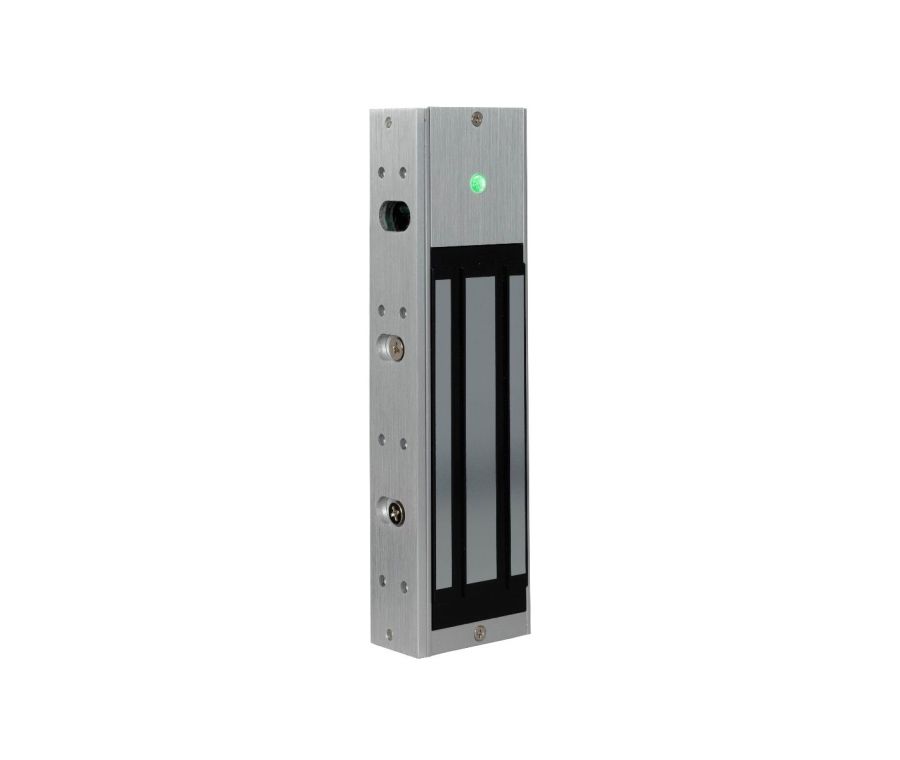

Monitored Standard Magnet Lock 545kg Holding Force | ML1200-M

Specification

• 545kgs (1200lb) Holding Force
• 12/24 VDC @ 600/300mA
• +/- 15% voltage tolerance
• Built in surge protection
• Aluminium housing
• Surface Mount
• Fail safe operation (power to lock)
• -10 deg to +50 deg operarating temperature
• Push off release pin on armature
• Monitored
• Voltage free relay contacts

Features

• Fire rated to BSEN1634-1 BS476:Part22:1987 (30,60,90 & 120min timber door set)
• Standard magnet
• Clean & compact design
• No residual magnetism
• Status LED indication on ML1200-M (red to green)

 Dimensions

• 266x72x40 (mm) Maglock (LxWxD)
• 185x60x15 (mm) Armature (LxWxD)
• 4.27kg (boxed)
• 2.79kg (unboxed)

Contents

• Standard magnet
• Armature plate
• 1200GB fixing kit
• Instructions
• Armature fixing template
