Pair Satin Brass 102x76x3mm Grade 13 ball bearing hinge - Radius | J9500RSB

Overview

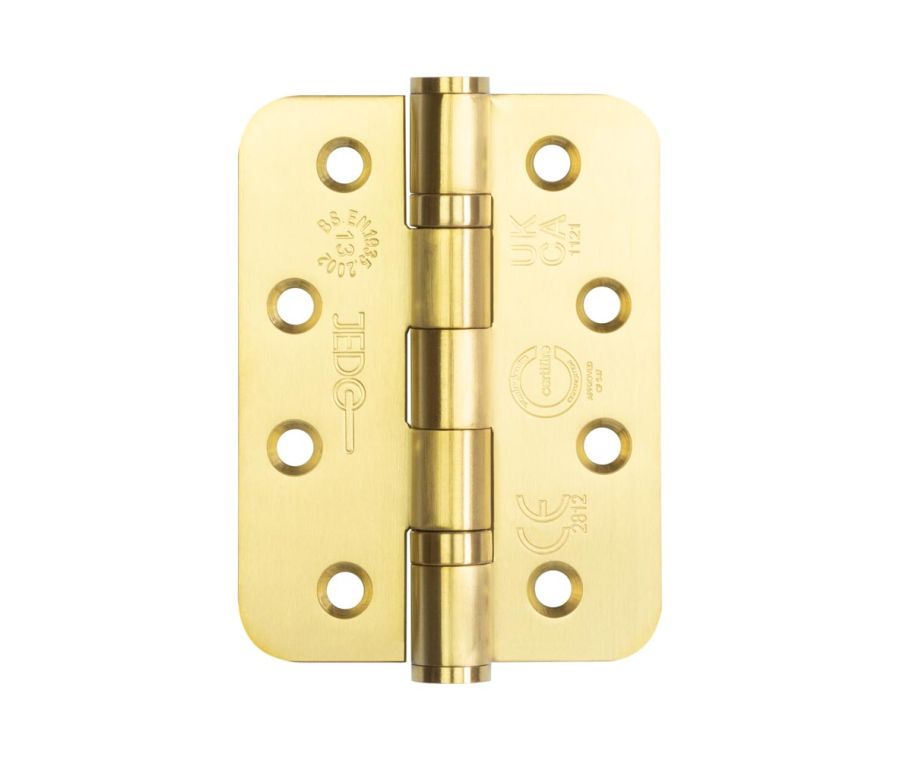

The Frelan 102x76x3mm Satin Brass Grade 13 ball bearing hinge is a hinge, finished in Satin Brass with curved radius corners.

Key Features

• Satin Brass finish on grade 201 stainless steel base
• Grade 13 tested : BS EN 1935:2002
• Grade 4 corrosion
• CE 2812
• UKCA 1121
• Suitable for 120kg doors when using 3 hinges
• Certifire
• Fire Rated FD30/60
• To maintain compliance with the fire standard relevant intumescent pack (GRA 3/GRA 3.2) is required.
• We strongly recommend requesting a sample before committing to any cutting or drilling
• Manufactured for Frelan Hardware

Technical Specifications

Suitable For

Hinges like this are suitable for internal doors in residential and commercial settings. This version is finished in black.

What's Included

• 1 x Pair Frelan 102x76x3mm plated Grade 13 ball bearing hinge

Installation & Maintenance

The hinge is morticed into the door and frame edges to the depth of the hinge leaf, then secured using the fixing screws supplied, ensuring all hinges on the door are fitted with the same orientation.

Finished in Satin Brass, this item should be wiped with a soft, dry or slightly damp cloth to keep the surface clean, avoiding abrasive cleaners which could damage the finish. Check that hinges remain correctly aligned and that fixing screws are tight at least once a year.

Frequently Asked Questions

Who manufactures this product?

It is manufactured for Frelan Hardware.

What finish is this hinge available in?

This version is finished in Satin Brass.

What is the product code?

The product code is J9500RSB.

Is this hinge sold individually?

This product is sold in pairs

How should this product be cleaned?

Wipe with a soft, dry or slightly damp cloth and avoid abrasive cleaners, which can damage the finish.
