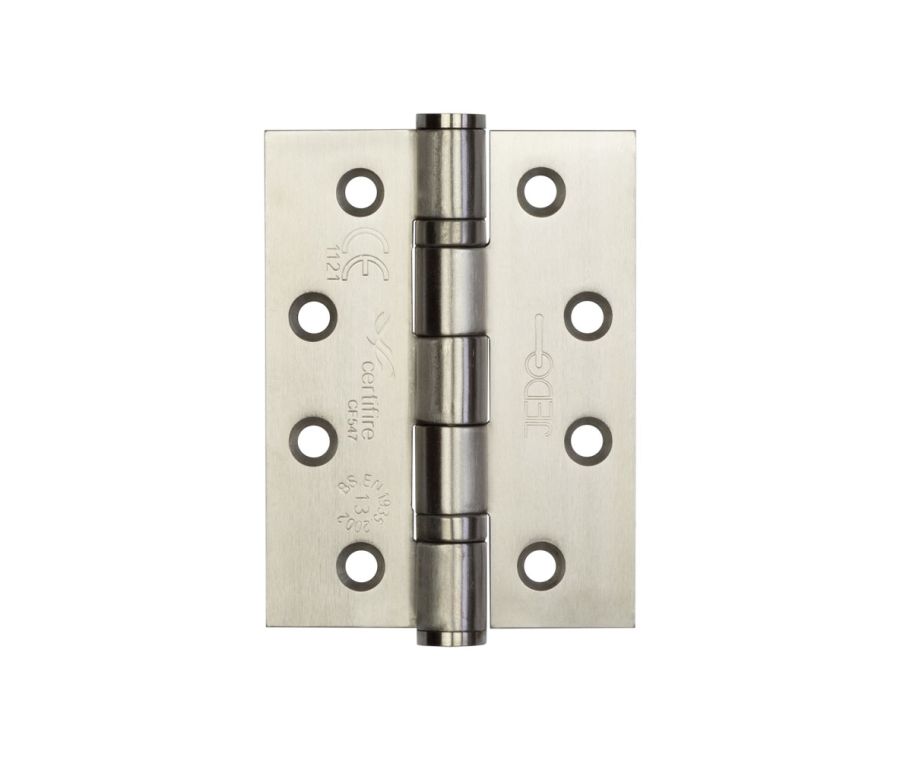

Pair Satin Stainless Steel Marine Grade (316g) Grade 13 Ball Bearing Hinges 102x76x3mm
Delivery2 - 3 Days
Product CodeJ9507SSS
Overview
The Pair Satin Stainless Steel Marine Grade (316g) Grade 13 Ball Bearing Hinges 102x76x3mm is a hinge, finished in Satin Stainless Steel.
Satin Stainless Steel UKCA Marked
Established in 1973 Frelan Hardware has since become a leading designer, manufacturer & supplier in the industry.
Key Features
- Satin Stainless Steel
- UKCA Marked
- CE Marked
- Fittings Included: Comes complete with 16 x wood screws (thread length: 28mm & thread diameter: 5mm)
- Tailored quotes are available for larger commercial projects, contact our team to discuss specifications and pricing
- Note: We recommend requesting a sample before installation to ensure compatibility and satisfaction
- To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 1 & GRA 1.2)
- Satin Stainless Steel finish
- Marine grade 316 stainless steel, suitable for coastal and humid environments
- Rated for 60 minute protection
- Manufactured for Frelan Hardware
Technical Specifications
| Brand | Frelan Hardware |
|---|---|
| Finish | Satin Stainless Steel |
| Type | Ball Bearing Hinge |
| Material Grade | 316 Stainless Steel |
| Max Door Weight | 120kg (3 hinges) |
| Fire Rating | FD30/60 |
| Certifire | Yes |
| Hinge Grade | 13 |
| Corrosion Grade | 4 |
| Mechanical Warranty | 10 Years |
| Use | Internal, Residential / Commercial |
| Height (H) | 102mm |
| Width (W) | 76mm |
| Knuckle | 14.5mm |
| Thickness | 3mm |
| Manufacturer | Frelan Hardware |
| Product Code | J9507SSS |
Suitable For
Designed as a hinge, this product is suitable for internal doors in residential and commercial settings. This version is finished in Satin Stainless Steel. It is rated for 60 minute protection. Its marine grade 316 stainless steel construction also makes it suitable for coastal and humid environments.
What's Included
- 1 x Pair Satin Stainless Steel Marine Grade (316g) Grade 13 Ball Bearing Hinges 102x76x3mm
- Fixing screws
Installation & Maintenance
Mortice the door and frame edges to match the thickness of the hinge leaf, then fit and screw each hinge into place, keeping the same orientation across all hinges on the door.
To keep the Satin Stainless Steel finish looking its best, wipe with a soft, dry or slightly damp cloth and avoid abrasive cleaners. Check that hinges remain correctly aligned and that fixing screws are tight at least once a year. If the hinge becomes stiff, apply a small amount of fine machine oil or a PTFE-based lubricant to the knuckle joint and wipe away any excess.
Frequently Asked Questions
Who manufactures this product?
It is manufactured for Frelan Hardware.
What finish is this hinge available in?
This version is finished in Satin Stainless Steel.
Is this suitable for fire doors?
Yes, it is rated for 60 minute protection.
Is this suitable for coastal or humid environments?
Yes, it is manufactured from marine grade 316 stainless steel, making it suitable for coastal and humid environments.
What is the product code?
The product code is J9507SSS.
Is this sold individually or as a pair?
As indicated in the product name, this item is sold as a pair.
