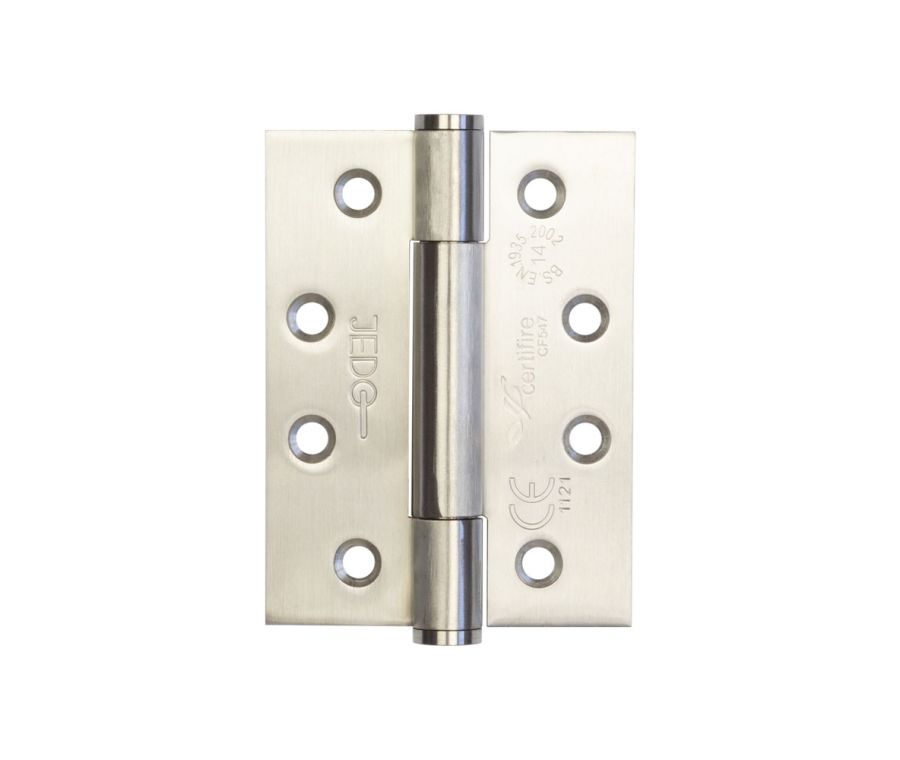

Pair Stainless Steel Grade 14 Concealed Bearing Hinge 102x76x3mm | J9400SSS
Delivery2 - 3 Days
Product CodeJ9400SSS
Overview
The Pair Stainless Steel Grade 14 Concealed Bearing Hinge 102x76x3mm is a hinge, finished in Satin Stainless Steel.
UKCA Marked CE Marked
Established in 1973 Frelan Hardware has since become a leading designer, manufacturer & supplier in the industry.
Key Features
- UKCA Marked
- CE Marked
- Tailored quotes are available for larger commercial projects, contact our team to discuss specifications and pricing
- Note: Fire tested when used with intumescent hinge pads. We recommend requesting a sample before any modifications
- Satin Stainless Steel finish
- Rated for 60 minute protection
- Manufactured for Frelan Hardware
Technical Specifications
| Brand | Frelan Hardware |
|---|---|
| Finish | Satin Stainless Steel |
| Type | Concealed Bearing Hinge |
| Material Grade | 201 Stainless Steel |
| Max Door Weight | 160kg (3 hinges) |
| Hinge Grade | 14 |
| Corrosion Grade | 4 |
| Standards | BS EN 1935 |
| Mechanical Warranty | 10 Years |
| Certifire | Yes |
| Fire Rating | FD30/60 |
| Use | Internal, Residential / Commercial |
| Height (H) | 102mm |
| Width (W) | 76mm |
| Knuckle | 14.5mm |
| Thickness | 3mm |
| Manufacturer | Frelan Hardware |
| Product Code | J9400SSS |
Suitable For
This hinge is suitable for internal doors in residential and commercial settings. This version is finished in Satin Stainless Steel. It is rated for 60 minute protection.
What's Included
- 1 x Pair Stainless Steel Grade 14 Concealed Bearing Hinge 102x76x3mm
Installation & Maintenance
Mortice the door and frame edges to match the thickness of the hinge leaf, then fit and screw each hinge into place, keeping the same orientation across all hinges on the door.
To keep the Satin Stainless Steel finish looking its best, wipe with a soft, dry or slightly damp cloth and avoid abrasive cleaners. Check that hinges remain correctly aligned and that fixing screws are tight at least once a year. If the hinge becomes stiff, apply a small amount of fine machine oil or a PTFE-based lubricant to the knuckle joint and wipe away any excess.
Frequently Asked Questions
Who manufactures this product?
It is manufactured for Frelan Hardware.
What finish is this hinge available in?
This version is finished in Satin Stainless Steel.
Is this suitable for fire doors?
Yes, it is rated for 60 minute protection.
What is the product code?
The product code is J9400SSS.
Is this sold individually or as a pair?
As indicated in the product name, this item is sold as a pair.
| mpn | J9400SSS |
|---|---|
| Delivery | 2 - 3 Days |
| SKU | J9400SSS |
| GTIN | 5029873304614 |
| Finish | Stainless Steel (Satin) |
| Brand Info | Established in 1973 Frelan Hardware has since become a leading designer, manufacturer & supplier in the industry. With the skills and experience of their team alongside regular quality control checks, they have maintained a reputation for excellence over the years and are ISO 9001:2015, ISO 14001:2015 & ISO 45001:2018 certified. Their handles have garnered a following on social media, with over 30,000 followers in two years. Despite their continued growth, they remain committed to product innovation and development. As a third-generation family business, they highly value their heritage and are committed to offering their customers the best possible products and service. They look forward to continuing to serve the door hardware needs of our customers for many years to come. |
