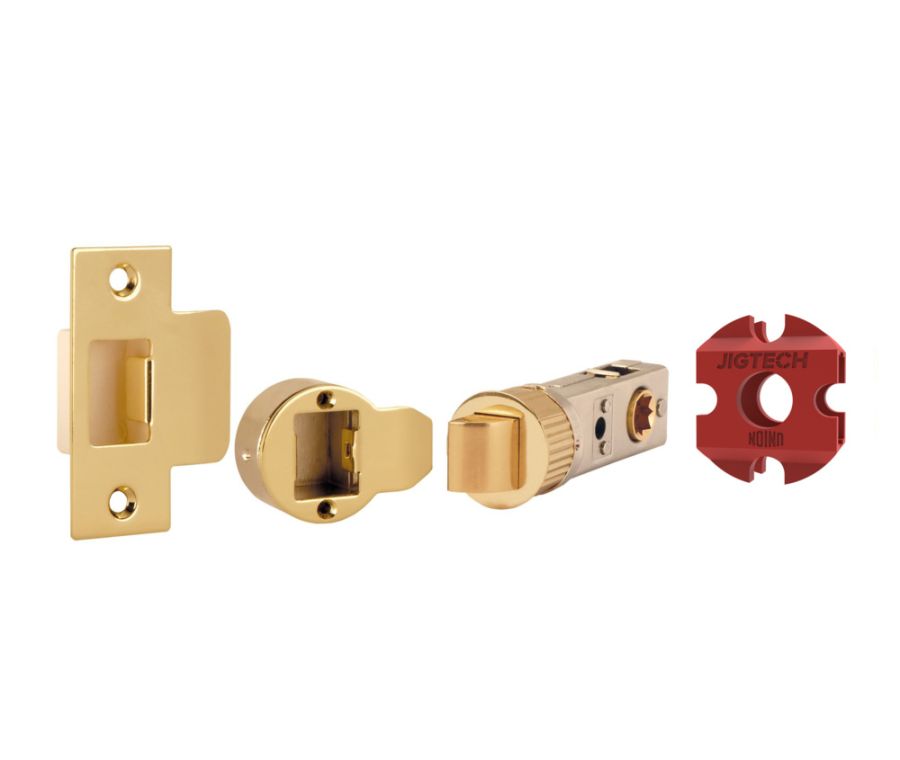

Polished Brass 57mm Smart Passage Latch - JIGTECH - CE/Fire Rated | JTL4420-F
£9.98 £8.32
In stock
SKU
JTL4420-F
Delivery2 - 3 Days
Product CodeJTL4420-F
Pairs well with
Polished Brass 57mm Smart Passage Latch - JIGTECH - CE/Fire Rated | JTL4420-F
Product Overview
Features
Jigtech CE SmartLatch is for use with the Jigtech system. Fast fitting in under 5 minutes it saves installer time in comparison to a rectangular faceplate for a more accurate, precise & clean installation. Can be used on both fire and non-fire-rated timber doors (FD60 with use of additional accessories) Additional 34mm spade bit (JTA5003-F) is needed to install the round dust box for fire doors.- Only compatible for use with the Jigtech Branded handles & accessories
- Standards: Certifire, EN12209, FD30
- Fire Rating is reached with use of Round Keep (supplied), Intumescent (JTA3060-IK supplied seperately), 34mm Spade Bit for fitting (JTA5003-F supplied seperately).
- All latches are supplied with Jigtech spacers, dustboxes / keeps, both round & rectangular strikeplate as standard
- 5 Year Manufacturer Warranty
- Part of the Jigtech Range
Dimensions
- Diameter: 20mm
- Length: 59.4mm
- Backset: 57mm
| mpn | JTL4420-F |
|---|---|
| Delivery | 2 - 3 Days |
| SKU | JTL4420-F |
| GTIN | 5011802370746 |
| Finish | Brass (Polished) |
| Brand Info | Jigtech is a revolutionary door handle and latch fitting system, designed to reduce installation time by 80%, resulting in improved efficiencies, cost saving and earning potential. The system is based around a unique jig that clamps to the door, automatically aligning the drill holes on both the door face and the edge. Holesaws are used to accurately bore the door, in preparation for the specially designed door handles and latches. |
