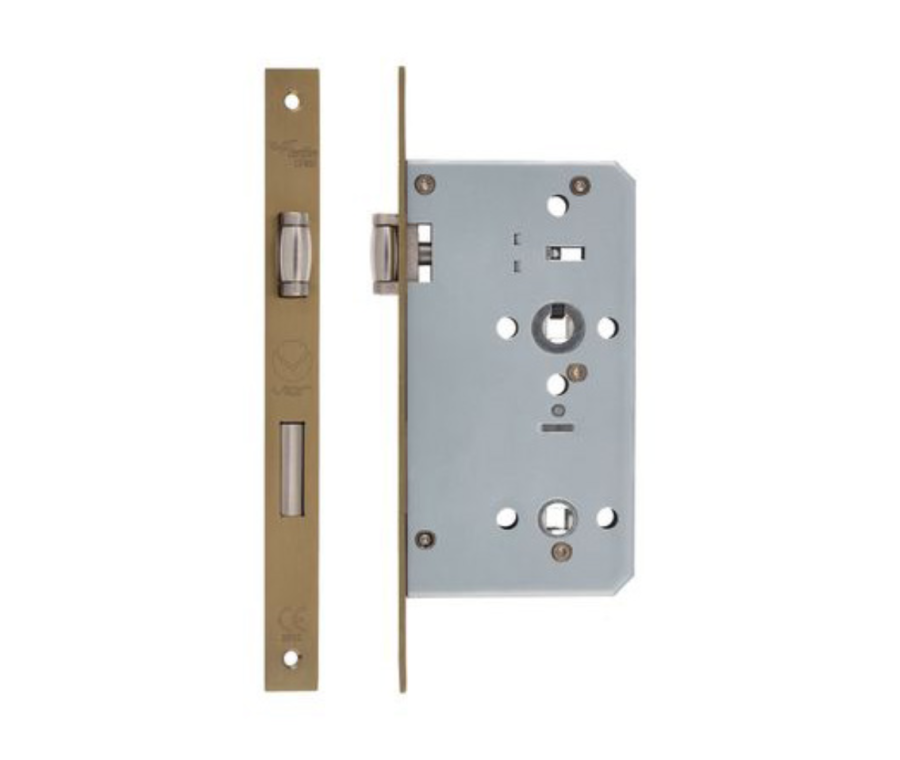

PVD Satin Brass DIN standard 60mm backset Lift to Lock | ZDL7260LLPVDSB

PVD Satin Brass DIN standard 60mm backset Lift to Lock

• Lift to lock feature
• For use with ZCS030LLPVDSB Lever
• DIN European standard
• Square or radius profile forend option availiable
• 22mm SS304 forend
• SS304 Latchbolt & deadbolt
• Double throw deadbolt
• Anti rattle strike
• Grip tight follower
• Fire door 30/60
• BS EN 12209 : 2003 Grade 3
• CE1121
• Certifire 30/60 minutes CF850
• For fire rating use with ZID Intumescent
• Vier ZDL range
• Manufatured for Zoo Hardware

Finish

• Satin Stainless Steel

Dimension:

• Backset: 60mm
• Case: 90mm x 165mm
• Forend: 22mm x 235mm
• Centre to centre: 72mm

Download Datasheet Here
