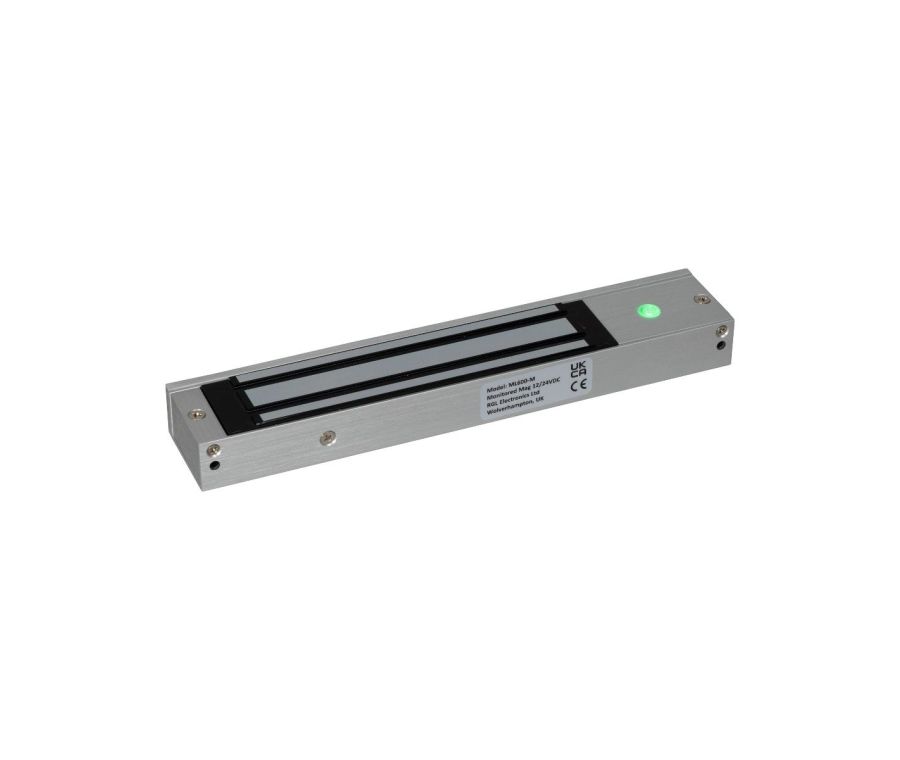

Slimline Mini Magnet 280kg Holding Force | ML600

Specification

• 280kgs (600lb) Holding Force
• Dual voltage 12/24 VDC @ 480/240mA
• +/- 15% voltage tolerance
• Built in surge protection
• Aluminium housing
• Surface Mount
• Fail safe operation (power to lock)
• -10 deg to +50 deg operarating temperature
• Push off release pin on armature (adjustable)

Features

• Fire rated to BSEN1634-1 BS476:Part22:1987 (30,60,90 & 120min timber door set)
• Slimline mini magnet
• Clean & compact design
• No residual magnetism
• Status LED indication on ML600 (red LED only)

 Dimensions

• 250x48x25 (mm) Maglock (LxWxD)
• 180x38x13 (mm) Armature (LxWxD)
• 1.97kg (boxed)
• 1.13g (unboxed)

Contents

• Slimline mini magnet
• Armature plate
• 600GB fixing kit
• Instructions
• Armature fixing template
