WINKHAUS Trulock STV-F 2070 M2 20mm Radius Faceplate With 2 Hooks Keywind Action – 45/92 RH

Overview

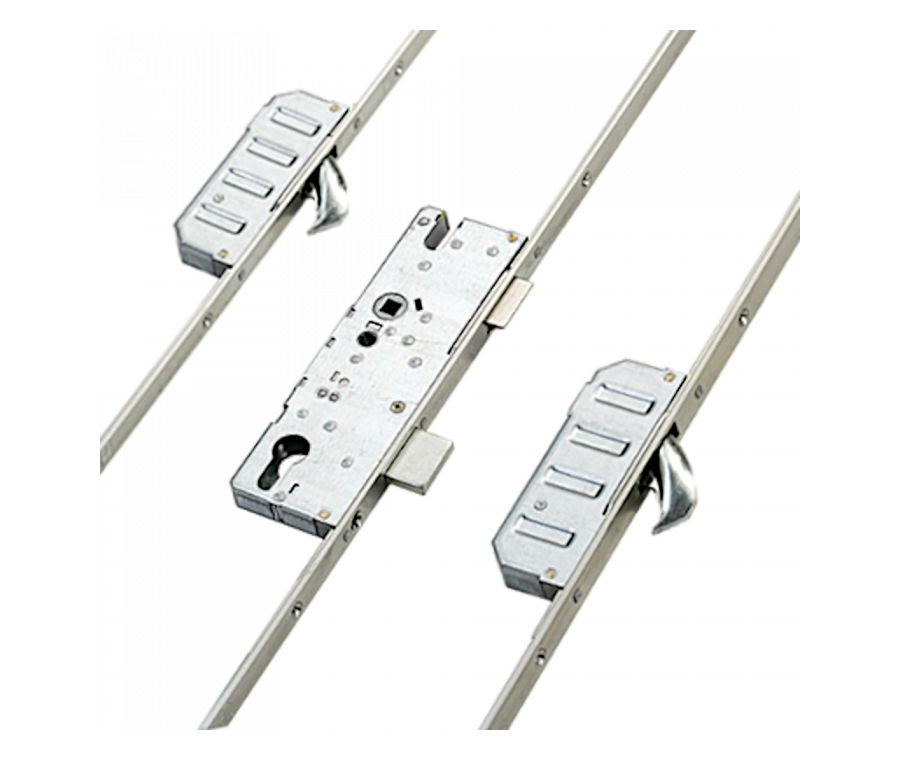

The Winkhaus Trulock STV-F 2070 M2 (45/92, Right Hand) is a keywind operated latch and deadbolt multipoint lock system with a 20mm radius faceplate, 92mm centres and 2 hooks. Turning the key 720 degrees clockwise or anti-clockwise engages or disengages both the deadbolt and the locking hooks at the same time, giving a simple one-action locking sequence.

This 45mm backset, right handed version is suitable for use on composite and timber doors, and is part of Winkhaus' Trulock+ range of multipoint locking systems.

Key Features

• Keywind (KTA) action: turn the key 720 degrees clockwise or anti-clockwise to engage or disengage both the deadbolt and the hooks together
• 20mm radius faceplate
• Low friction hook thrust plates for smooth operation
• Latch and deadbolt centre case
• 25mm throw tensile steel hooks
• 45mm backset, Right Hand
• 92mm centres
• Suitable for use on composite and timber doors
• Meets Secured By Design standards
• Also available in Left Hand, and in a 55mm backset

Technical Specifications

Suitable For

This lock is designed for composite and timber doors in residential and light commercial settings, where a multipoint latch and deadbolt locking system with hook bolts is required. This variant suits doors with a 45mm backset and a right handed configuration.

What's Included

• 1 x Winkhaus Trulock STV-F 2070 M2 lock case (45/92, Right Hand), complete with 2 hook bolts

Keeps (frame strikers) are matched to the door profile they are being fitted to and may need to be ordered separately. This lock is sold individually, with a trade box quantity of 5.

Installation & Maintenance

Before ordering, confirm the handing of your door. Standing inside the property facing the door: if the door is hinged on the right and opens inward, it is right handed; if hinged on the left and opens inward, it is left handed. If the door opens outward, the handing is reversed. Also confirm the backset (the distance from the door edge to the centre of the handle spindle) matches 45mm before fitting.

The lock case fits into a mortice in the door edge, with the two hook bolts engaging keeps fitted to the frame at the locking point distances shown on the lock (720mm and 770mm from the centre case). Turning the key 720 degrees engages or disengages the deadbolt and both hooks together.

To keep the mechanism operating smoothly, apply a small amount of light lock lubricant, such as PTFE or graphite-based lubricant, to the keyway and moving parts periodically, and avoid oil-based lubricants which can attract dirt. Check that keeps remain correctly aligned, and do not force the key if resistance is felt.

Frequently Asked Questions

What does "Keywind" mean?

Keywind (KTA) operation means the key is turned 720 degrees, either clockwise or anti-clockwise, to engage or disengage both the deadbolt and the two locking hooks in a single action.

How do I know if I need left or right handing?

Stand inside the property facing the door. If it is hinged on the right and opens inward, it is right handed; if hinged on the left and opens inward, it is left handed. The handing reverses if the door opens outward.

What backset does this lock have?

This version has a 45mm backset. A 55mm backset version is also available.

Is this suitable for composite doors?

Yes, it is suitable for use on both composite and timber doors.

Does this lock meet any security standards?

Yes, it meets Secured By Design standards.

What is included with this lock?

The lock case is supplied complete with its two hook bolts. Frame keeps are specific to the door profile and may need to be ordered separately.

What is the overall length of this lock?

The lock case measures 1.77m (1770mm) in length, with a case height of 186mm.

Is this available in other sizes or handings?

Yes, this lock is also available in Left Hand, and in a 55mm backset version in both handings.
