Set Ceam 1230 Concealed Hinge Extension Brackets to suit 8mm - 20mm thick Cladding

Set (Two Brackets for One Hinge) Ceam 1230 Concealed Hinge Extension Bracket to suit 8mm - 20mm thick Cladding

• Milled finish Aluminium (Hammerite spray paint recommended to required colour)
• Dimensions H136mm x W46mm x D26mm
• Machine Screw M5 x 10mm with 9.2mm- 9.8mm countersunk head.
• Screw Holes to suit Guage 8 woodscrews
• SUPPLIED WITHOUT FIXINGS
• SUPPLIED WITHOUT HINGE
• 10mm Router bit required

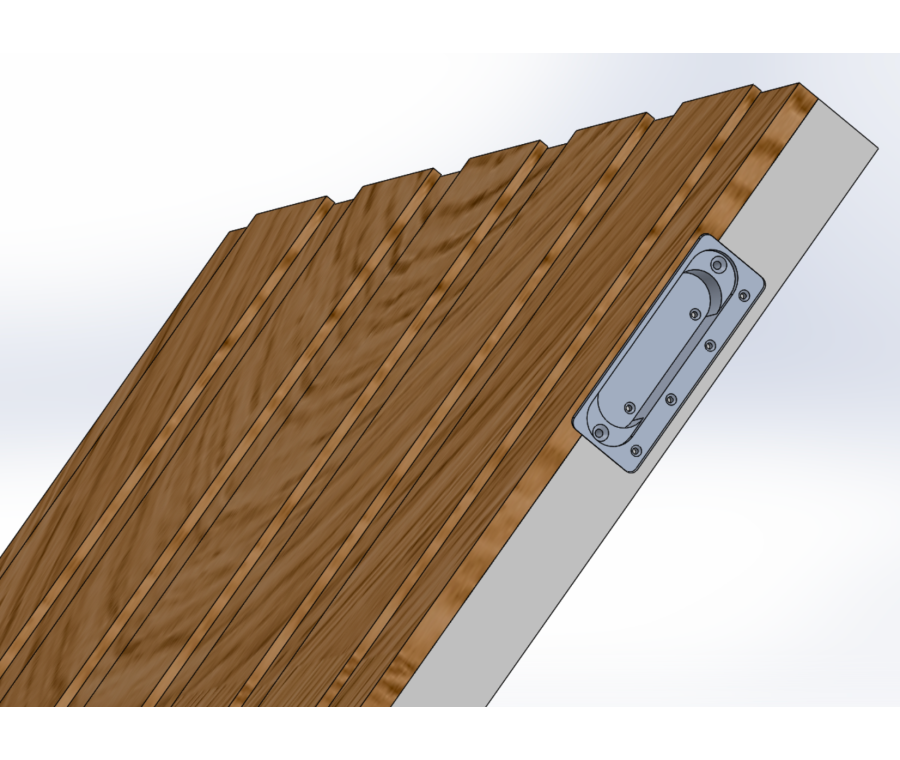

Ceam 1230 Raw Milled Aluminium seating bracket to be used with Cladding between 8mm - 20mm thick. This bracket allows the Ceam 1230 to be fitted by 2 countersunk machine screws(not supplied), and give an extension of throw, to allow cladding to be fitted without the two surfaces colliding with each other when opened. The brackets come with 6 fixing holes to accommodate gauge 8 wood screws for a secure fixing. This brackets haven’t been fire tested and NOT SUITABLE FOR FIRE DOORS.
