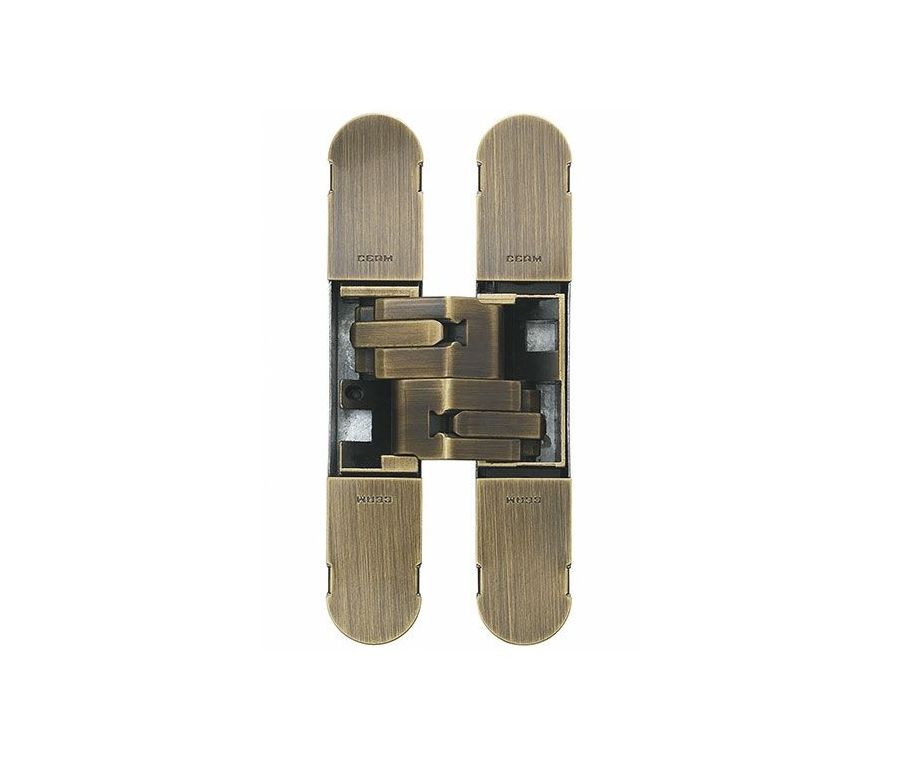

Ceam Antique Satin Bronze 130mm 3D Concealed Hinge 1230 | CI001230BRS00
  • Information

Ceam Antique Satin Bronze 3D Concealed Hinge 1231



  • Concealed heavy duty hinge

  • Suitable for unrebated, flush faced quality timber doors

  • Removable cover plates to concealed adjustment screws

  • 3D Adjustable for fine tuning whilst fitting

  • Suitable for FD30/60 fire doors when used with intumescent kit

  • 10 year mechanical guarantee

  • Ceam range from Eurospec by Carlisle Brass


Finish:



  • Antique Satin Bronze


Suitable for:



  • 2 Hinge Max load: 50kg

  • 3 Hinge Max load: 70kg


    • 4 Hinge Max load: 80kg

    • Rated FD60 for 60 minute Fire Door

    • Domestic Use


    Dimensions



    • Length: 130mm

    • Width: 30mm

    • Depth: 21mm

    • Min Door Thickness: 35mm

    Product Code Delivery
    CI001230BRS00 24-48hrs
    Unit Excl. Tax: £21.00 Incl. Tax: £25.20 Ex VAT
    +10
    £20.50Ex VAT
    +30
    £20.00Ex VAT
