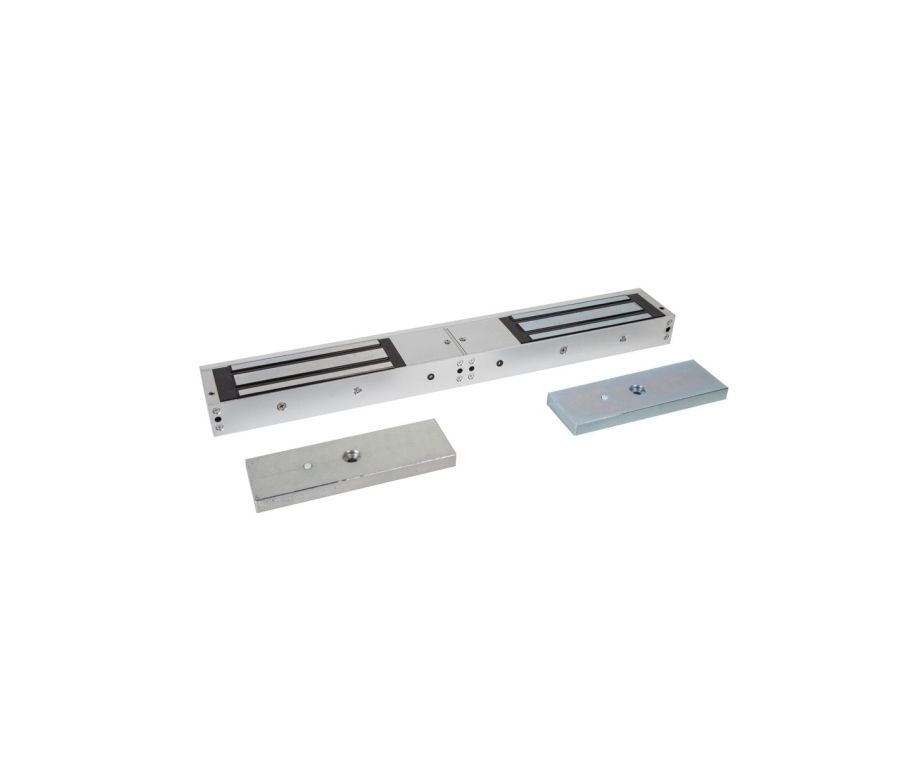

Monitored Double Magnetic Lock 545kg x 2 Holding | ML1200-D-M

Specification

• 545kgs (1200lb) Holding Force x 2
• Aluminium housing
• 12/24 VDC @ 600/300mA x 2
• +/- 15% voltage tolerance
• Built in surge protection
• Push off release pin on armature
• Surface Mount
• Fail safe operation (power to lock)
• -10 deg to +50 deg operarating temperature
• Monitored
• Voltage free relay contacts

Features

• Fire rated to BSEN1634-1-2014 BS476:Part22:1987 (30,60,90 & 120min timber door set)
• Standard magnet
• Clean & compact design
• No residual magnetism
• Status LED indication on ML1200-M (red to green)

 Dimensions

• 530x73x40 (mm) Maglock (LxWxD)
• 185x60x15 (mm) Armature (LxWxD)
• 8.54kg (boxed)
• 5.58kg (unboxed)

Contents

• Standard double magnet
• Armature plate x 2
• 1200GB fixing kit x 2
• Instructions
• Armature fixing template
